Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS75105YFFT is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 1.5V output, the tolerance would be ±30mV.
The absolute maximum input voltage rating for the TPS75105YFFT is 7V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
The TPS75105YFFT has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down quickly to minimize power consumption. However, the exact behavior may depend on the specific application and circuit design.
The TPS75105YFFT is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to follow the recommended operating conditions and derate the device's performance accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS75105YFFT Overview

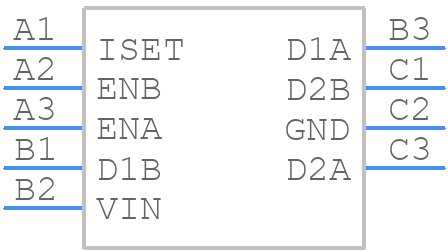

Use the download button to access the TPS75105YFFT schematic symbol, PCB footprint, and 3D model.
