TPS75125QPWPR - Texas Instruments

Description: LDO Voltage Regulators Fast-Tran-Resp 1.5-A

Download TPS75125QPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

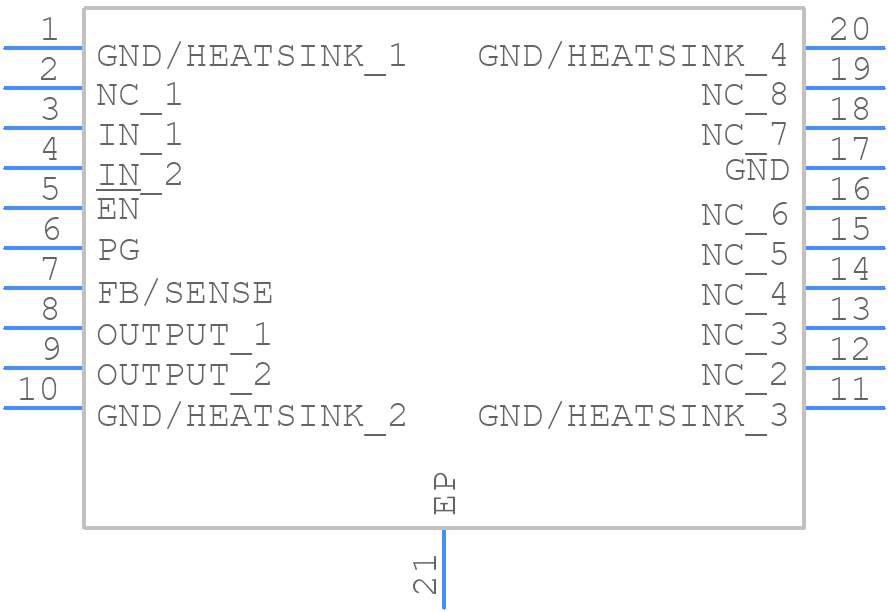

TPS75125QPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS75125QPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)_1
click to zoom
3D Models
TPS75125QPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)_1
click to zoom

TPS75125QPWPR Details

  • Manufacturer Part Number:

    TPS75125QPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.16 V

  • Input Voltage Absolute-Max:

    5.5 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Line Regulation-Max:

    0.00375%

  • Load Regulation-Max:

    0.001%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4.4 mm

TPS75125QPWPR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS75125QPWPR is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can cause damage to the device.
  • To ensure the output voltage is stable and accurate, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a 10uF ceramic capacitor at the output and a 1uF ceramic capacitor at the input. Additionally, ensure that the input voltage is within the recommended operating range and that the device is operated within its specified temperature range.
  • The minimum input voltage required for the TPS75125QPWPR to operate is 2.7V, as specified in the recommended operating conditions section of the datasheet. Operating the device below this voltage may result in reduced performance or failure to regulate the output voltage.
  • The TPS75125QPWPR is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating. Consult the datasheet and application notes for more information on high-temperature operation.
  • The output voltage of the TPS75125QPWPR is determined by the resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network. Consult the datasheet for more information on output voltage calculation and adjustment.
