SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS75201QPWPREP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, it's recommended to use an output capacitor with a minimum equivalent series resistance (ESR) of 0.1 ohms and a minimum capacitance of 2.2 uF. Additionally, the output capacitor should be placed close to the device and connected to the output pin with a short, low-impedance path.
The maximum input voltage rating for the TPS75201QPWPREP is 13.2V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS75201QPWPREP is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage according to the thermal derating curves provided in the datasheet to ensure reliable operation in high-temperature environments.
The power dissipation of the TPS75201QPWPREP can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the thermal resistance of the package and the ambient temperature should be considered to ensure the device operates within its thermal limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS75201QPWPREP Overview

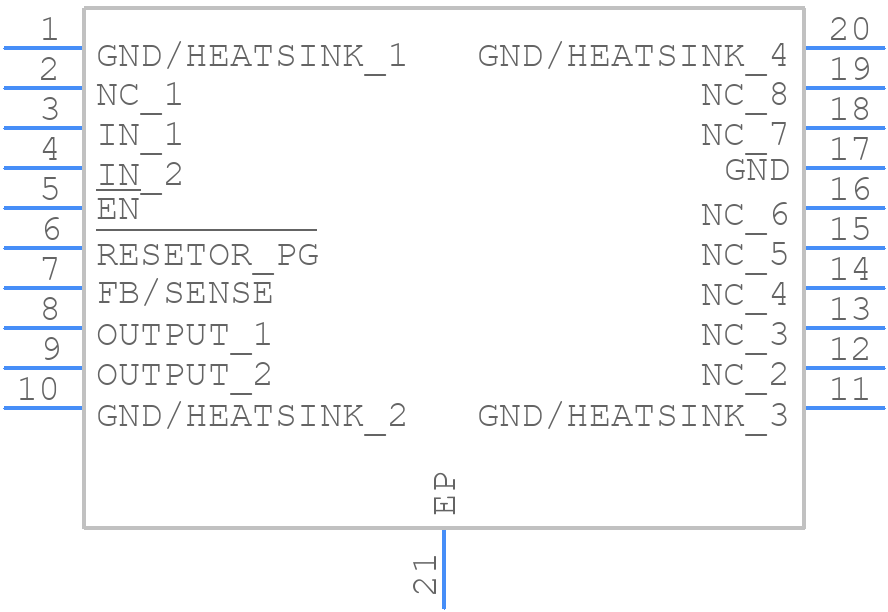

Use the download button to access the TPS75201QPWPREP schematic symbol, PCB footprint, and 3D model.
