SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS75225QPWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS75225QPWPG4 is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 2.5V output, the tolerance would be ±50mV.
The maximum input voltage that can be applied to the TPS75225QPWPG4 is 13.2V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS75225QPWPG4 has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down quickly to minimize power consumption. However, the exact behavior may depend on the specific application and external components used.
The TPS75225QPWPG4 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the recommended operating conditions and to consider the thermal design of the system to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS75225QPWPG4 Overview

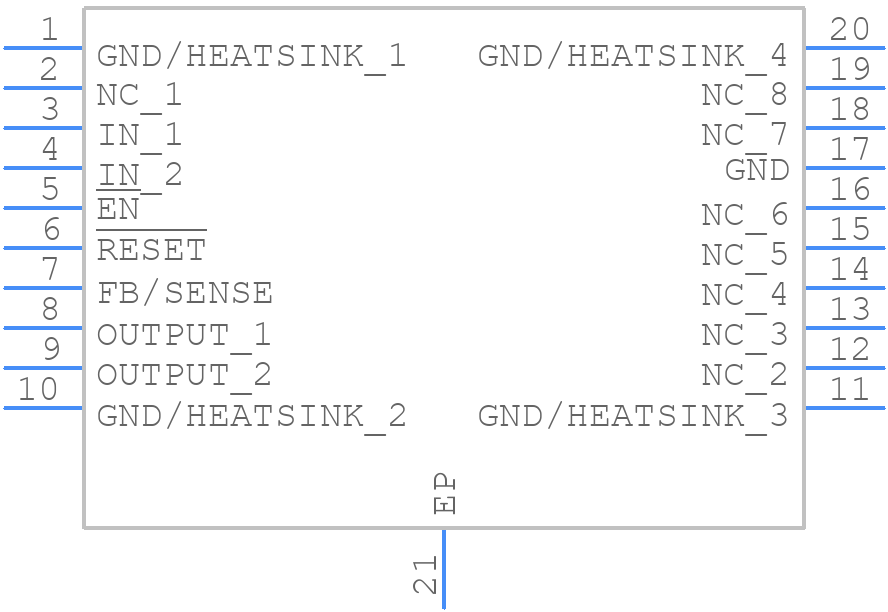

Use the download button to access the TPS75225QPWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS75,
or try a keyword search, such as Linear Regulator ICs
