TPS75325QPWPREP - Texas Instruments

Description: LDO Voltage Regulators Mil Enh Fast-Trans Resp 1.5A LDO

Download TPS75325QPWPREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

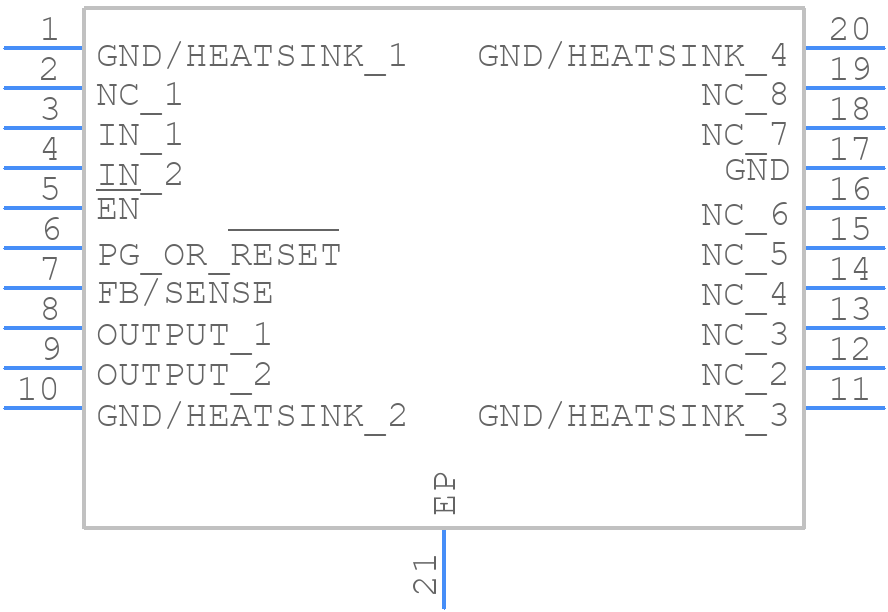

TPS75325QPWPREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS75325QPWPREP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)- HEIGHT1.2
click to zoom
3D Models
TPS75325QPWPREP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)- HEIGHT1.2
click to zoom

TPS75325QPWPREP Details

  • Manufacturer Part Number:

    TPS75325QPWPREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.16 V

  • Input Voltage Absolute-Max:

    5.5 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Line Regulation-Max:

    0.00375%

  • Load Regulation-Max:

    0.001%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4.4 mm

TPS75325QPWPREP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • To ensure stability, it's recommended to use an output capacitor with a minimum equivalent series resistance (ESR) of 0.1 ohms and a minimum capacitance of 2.2 uF. Additionally, the output capacitor should be placed as close as possible to the device, and the device's output voltage should be decoupled from the input voltage using a capacitor with a value of 1 uF or greater.
  • The maximum input voltage that can be applied to the TPS75325QPWPREP is 13.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
  • The TPS75325QPWPREP has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device's output voltage will decay rapidly to prevent any backflow of current into the input. It's recommended to follow a controlled power-up and power-down sequence to ensure reliable operation.
  • The TPS75325QPWPREP has a thermal derating of 12.5 mW/°C above 25°C, which means that the device's power dissipation should be reduced as the ambient temperature increases to prevent overheating and ensure reliable operation.
