Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The output voltage tolerance of the TPS76701QDR is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 3.3V output, the tolerance would be ±66mV.
The absolute maximum input voltage rating for the TPS76701QDR is 13.5V. However, it's recommended to operate the device within the recommended input voltage range of 6.5V to 12V to ensure optimal performance and reliability.
The TPS76701QDR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using a heat sink or thermal management techniques to keep the device within its recommended operating temperature range.
To ensure stability, follow the recommended output capacitor and ESR values in the datasheet. Additionally, ensure that the input capacitor is properly sized and placed close to the device. Avoid using capacitors with high ESL or ESR values, and consider adding a small ceramic capacitor in parallel with the output capacitor to improve stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS76701QDR Overview

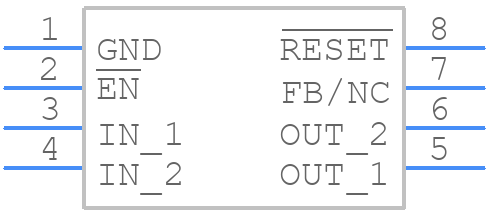

Use the download button to access the TPS76701QDR schematic symbol, PCB footprint, and 3D model.
