SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS76701QPWPREP Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS76701QPWPREP is 13.2V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be selected based on the input voltage and current requirements.
The maximum output current that the TPS76701QPWPREP can deliver is 1A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
To handle thermal considerations, it's essential to follow the recommended thermal design guidelines provided in the datasheet. This includes selecting a suitable heat sink, ensuring good airflow, and avoiding thermal hotspots. The device's thermal performance can be monitored using the thermal shutdown feature.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS76701QPWPREP Overview

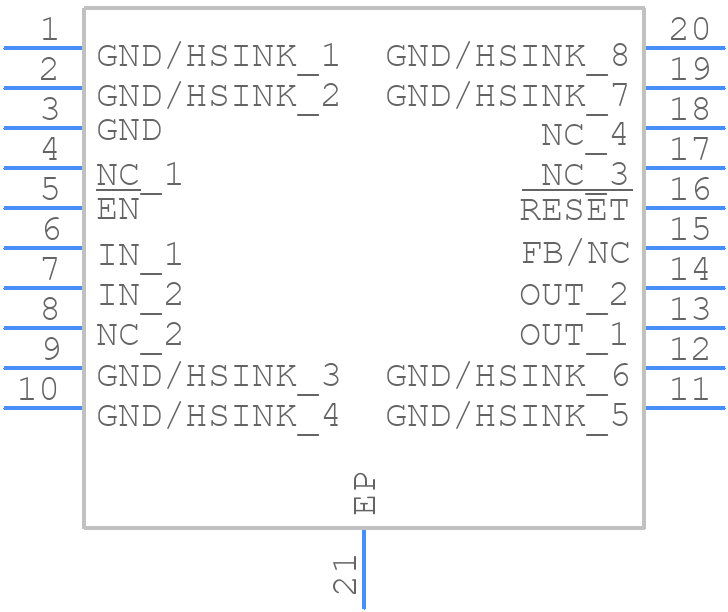

Use the download button to access the TPS76701QPWPREP schematic symbol, PCB footprint, and 3D model.
