SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS76733QPWPR Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS76733QPWPR is 13.2V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 7V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, using a high-quality output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value (e.g., 10uF) can help maintain output voltage stability.
The TPS76733QPWPR can deliver up to 3A of output current, depending on the input voltage and output voltage settings. However, it's essential to ensure that the device is operated within its thermal limits to prevent overheating and maintain reliability.
The TPS76733QPWPR has a fixed output voltage option, but it can be configured for a specific output voltage using external resistors. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, Texas Instruments provides a voltage regulator calculator tool to simplify the design process.
The TPS76733QPWPR has a thermal shutdown feature that protects the device from overheating. It's essential to ensure good thermal design practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing thermal resistance. The datasheet provides thermal resistance values and thermal design guidelines to help with the design process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS76733QPWPR Overview

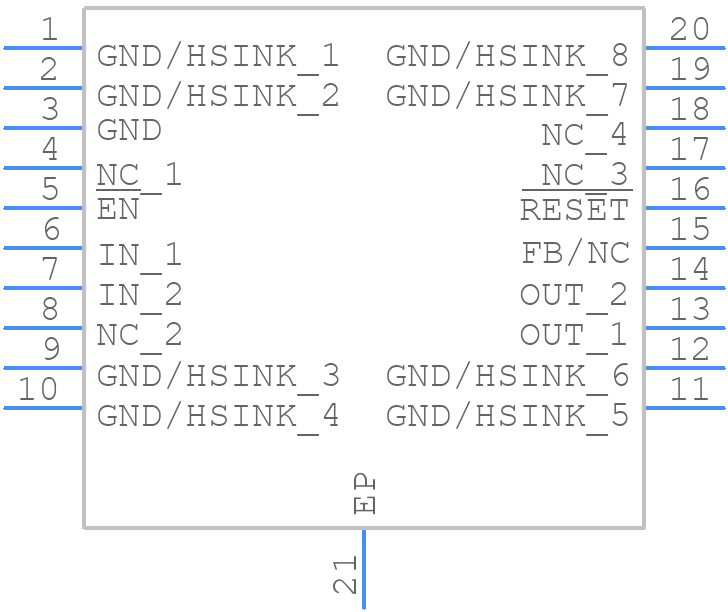

Use the download button to access the TPS76733QPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS76,
or try a keyword search, such as Linear Regulator ICs
