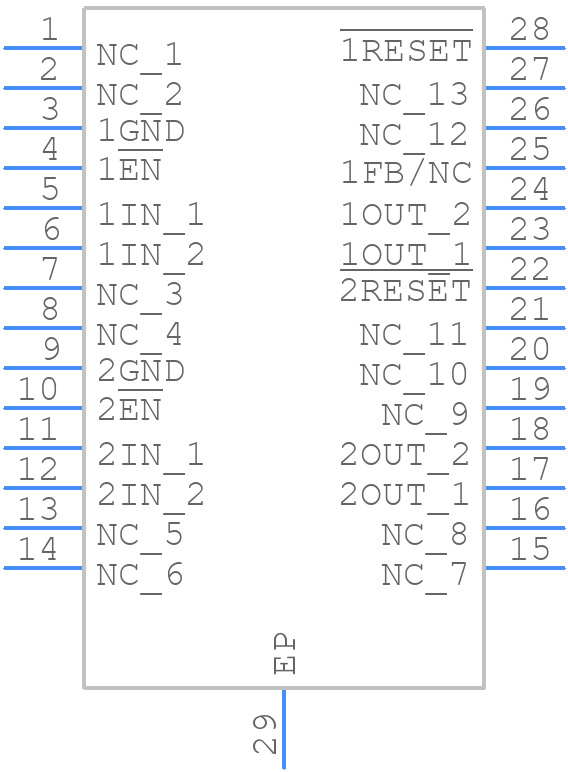

TPS767D301MPWPREP - Texas Instruments

TPS767D301MPWPREP Details

• Manufacturer Part Number:

  TPS767D301MPWPREP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SSOP

• Package Description:

  HTSSOP-28

• Pin Count:

  28

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  4

• Adjustability:

  FIXED/ADJUSTABLE

• Dropout Voltage1-Max:

  0.575 V

• Dropout Voltage1-Nom:

  0.35 V

• Dropout Voltage2-Max:

  0.575 V

• Input Voltage Absolute-Max:

  13.5 V

• Input Voltage-Max:

  10 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  9.7 mm

• Load Regulation-Max:

  0.003%

• Load Regulation-Max(%):

  0.09%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  28

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -55 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current1-Max:

  1 A

• Output Current2-Max:

  1 A

• Output Voltage1-Max:

  5.5 V

• Output Voltage1-Min:

  1.5 V

• Output Voltage1-Nom:

  3.3 V

• Output Voltage2-Max:

  5.5 V

• Output Voltage2-Min:

  1.5 V

• Output Voltage2-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Technology:

  PMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  4.4 mm
