SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS767D318PWPG4 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS767D318PWPG4 is 13.2V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor with a minimum capacitance of 10uF, and placing it as close as possible to the output pin. Additionally, the input capacitor should be selected based on the input voltage and current requirements.
The maximum output current that the TPS767D318PWPG4 can deliver is 1A. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation. The datasheet provides a graph to help determine the maximum output current based on the operating conditions.
The TPS767D318PWPG4 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. The OVP threshold is typically 14.5V, and the UVLO threshold is typically 2.2V. However, it's recommended to add external protection circuits, such as a voltage supervisor or a reset IC, to provide additional protection and ensure reliable system operation.
The thermal shutdown temperature of the TPS767D318PWPG4 is typically 150°C. When the junction temperature exceeds this threshold, the device will shut down to prevent damage. The thermal shutdown is an automatic reset feature, and the device will resume normal operation once the junction temperature cools down to a safe level.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS767D318PWPG4 Overview

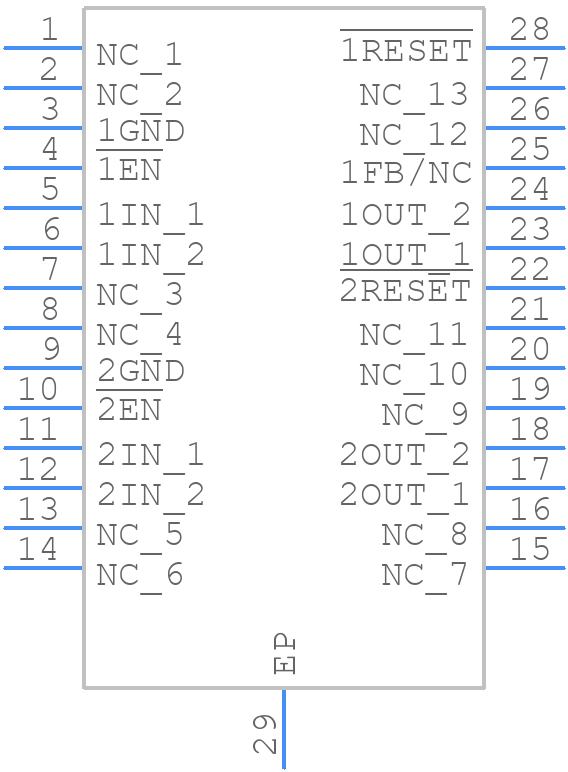

Use the download button to access the TPS767D318PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS76,
or try a keyword search, such as Linear Regulator ICs
