SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
PMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS767D325PWPR Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS767D325PWPR is 13.2V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, ensure that the input capacitor is properly sized and placed to minimize input voltage ripple.
The maximum output current that the TPS767D325PWPR can deliver is 500mA, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
Thermal management is critical for the TPS767D325PWPR, especially in high-power applications. Ensure that the device is mounted on a suitable heat sink or PCB with adequate thermal conductivity. Follow the recommended thermal design guidelines provided in the datasheet, and consider using thermal interface materials to improve heat transfer.
The TPS767D325PWPR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is operated within its recommended temperature range, and consider using thermal protection mechanisms, such as thermal shutdown or overtemperature protection, to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS767D325PWPR Overview

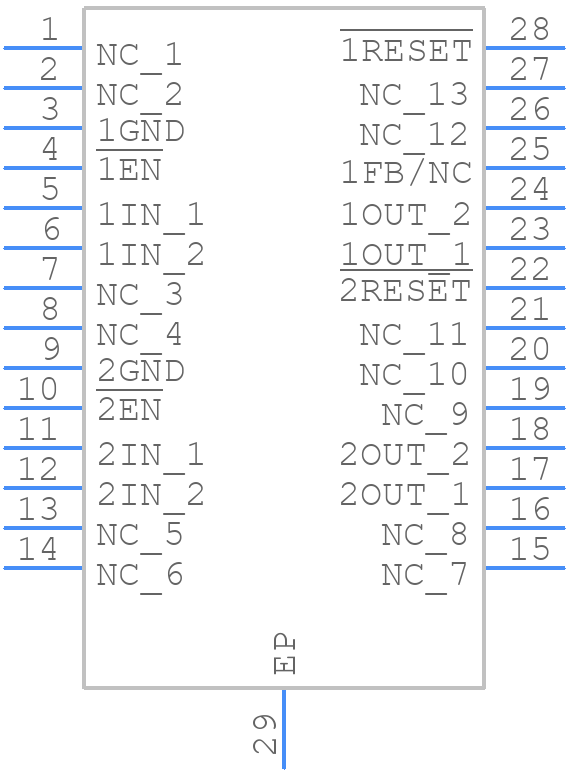

Use the download button to access the TPS767D325PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS76,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
