The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve overall system stability.
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and add a 10nF to 100nF capacitor between the VOUT and GND pins to filter out high-frequency noise. Additionally, avoid using long traces and minimize the distance between the input and output capacitors.
The maximum output current of the TPS76801QDRG4 is 150mA. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the datasheet for the recommended operating conditions and thermal derating factors.
The TPS76801QDRG4 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. Be sure to check the datasheet for thermal derating factors and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
The output voltage of the TPS76801QDRG4 is adjustable using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 1.221V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network. Be sure to choose resistors with a high tolerance to ensure accurate output voltage regulation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS76801QDRG4 Overview

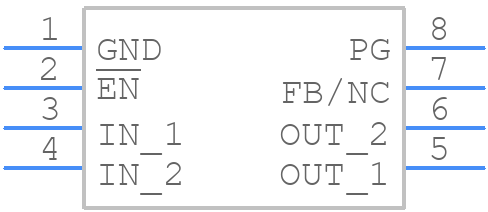

Use the download button to access the TPS76801QDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS76,
or try a keyword search, such as Linear Regulator ICs
