A good PCB layout for the TPS780180300DRVR should include a solid ground plane, decoupling capacitors close to the device, and a separate power plane for the input voltage. The datasheet provides a recommended layout, but it's essential to follow good PCB design practices to minimize noise and ensure reliable operation.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. The datasheet provides guidance on output capacitor selection, but it's essential to consider the specific requirements of your application.
The TPS780180300DRVR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 6.5V to 18V. Exceeding the absolute maximum rating can damage the device.
To ensure stability, follow the recommended PCB layout, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the datasheet provides guidance on component selection and layout to prevent oscillation.
The thermal derating curve for the TPS780180300DRVR is not explicitly provided in the datasheet. However, the device has a maximum junction temperature rating of 150°C. As a general guideline, the device's power dissipation should be derated by 1.5% per °C above 25°C to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS780180300DRVR Overview

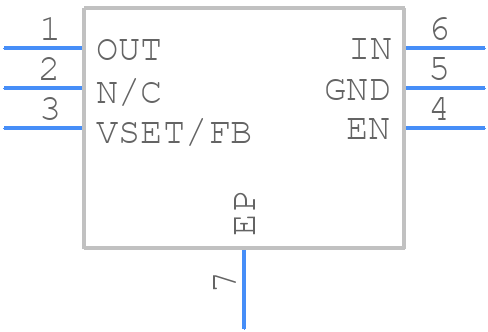

Use the download button to access the TPS780180300DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
