A good PCB layout for the TPS780330220DRVR should include a solid ground plane, decoupling capacitors close to the device, and a separate power plane for the input voltage. The datasheet provides a recommended PCB layout, but it's essential to follow good PCB design practices to minimize noise and ensure optimal performance.
The input capacitor should be chosen based on the input voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. The datasheet provides guidance on selecting the input capacitor, but it's essential to consider the specific requirements of your application.
The TPS780330220DRVR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design of your system, including heat sinking and airflow, to ensure reliable operation over the desired temperature range.
To ensure EMC, it's essential to follow good design practices, including using a solid ground plane, decoupling capacitors, and shielding. The TPS780330220DRVR is designed to meet CISPR 22 Class B emissions limits, but it's still important to consider the specific EMC requirements of your application and design accordingly.
The output capacitor should be chosen based on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. The datasheet provides guidance on selecting the output capacitor, but it's essential to consider the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS780330220DRVR Overview

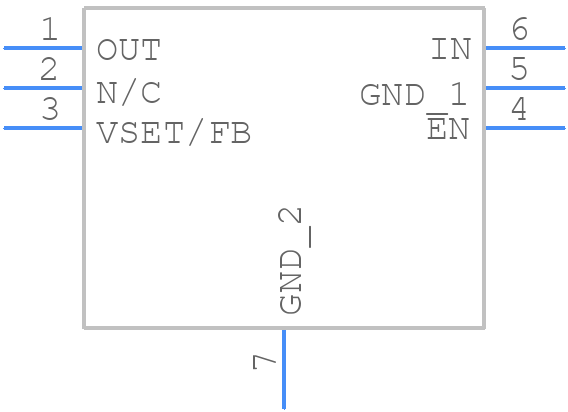

Use the download button to access the TPS780330220DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
