Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are of high quality and have low ESR. Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device.
The maximum ambient temperature range for the TPS781330220DRVR is -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the temperature derating curve provided in the datasheet.
Yes, the TPS781330220DRVR is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. Additionally, you can use oscilloscopes and other debugging tools to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS781330220DRVR Overview

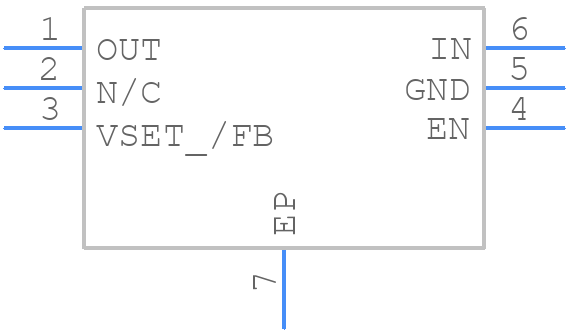

Use the download button to access the TPS781330220DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
