The maximum input voltage that can be applied to the TPS78330DDCR is 6.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.2V to 5.5V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor with a minimum capacitance of 2.2uF and an ESR of 1 ohm or less, as well as placing the input and output capacitors close to the device.
The TPS78330DDCR can deliver a maximum output current of 150mA. However, the actual output current capability may be limited by the input voltage, output voltage, and ambient temperature. It's essential to consult the datasheet and perform thermal calculations to ensure the device can deliver the required output current in the specific application.
To handle thermal management, it's essential to follow the recommended layout and thermal design guidelines provided in the datasheet. This includes providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device. The maximum junction temperature of the device is 150°C, and it's essential to keep the junction temperature below this limit to ensure reliable operation.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78330DDCR Overview

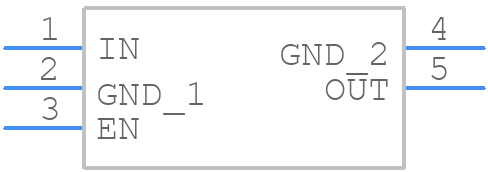

Use the download button to access the TPS78330DDCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
