Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the layout guidelines for the specific package type (QFN) and to ensure proper heat dissipation. A good practice is to use a 4-layer PCB with a solid ground plane and to keep the input and output capacitors close to the device.
The choice of input and output capacitors depends on the specific application requirements, such as ripple current, ESR, and voltage rating. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The datasheet provides guidance on the recommended capacitor values and types.
The maximum ambient temperature for the TPS78410QWDRBRQ1 is 85°C, but the device can operate up to 125°C junction temperature. It's essential to ensure proper heat dissipation and to derate the device's performance at higher temperatures.
The TPS78410QWDRBRQ1 is an automotive-grade device, but it's essential to ensure that it meets the specific requirements of the application, such as AEC-Q100 qualification. Texas Instruments provides additional documentation and support for high-reliability and automotive applications.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. It's essential to follow the recommended PCB layout, component selection, and application guidelines to prevent issues. Additionally, Texas Instruments provides technical support and application notes to help troubleshoot specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78410QWDRBRQ1 Overview

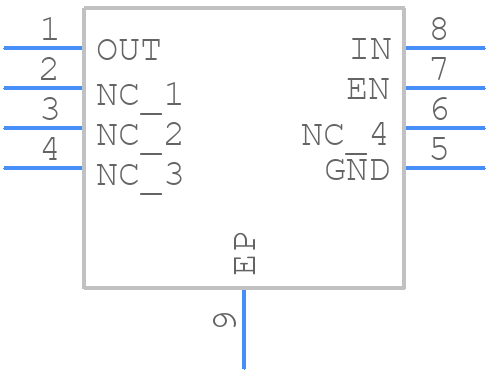

Use the download button to access the TPS78410QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
