TPS78411QWDRBRQ1 - Texas Instruments

Description: LDO Voltage Regulators Automotive 300-mA lo w-IQ high-PSRR L

Download TPS78411QWDRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

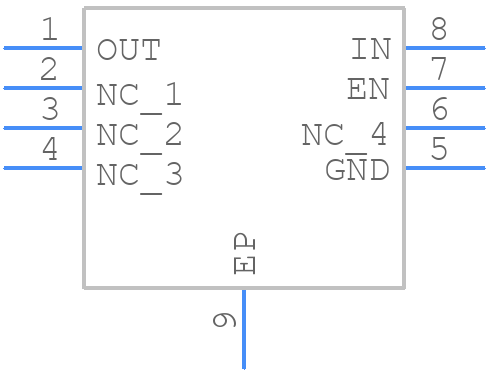

Symbol
TPS78411QWDRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS78411QWDRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
TPS78411QWDRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

TPS78411QWDRBRQ1 Details

  • Manufacturer Part Number:

    TPS78411QWDRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.775 V

  • Dropout Voltage1-Nom:

    0.115 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    1.65 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0003%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.1187 V

  • Output Voltage1-Min:

    1.0813 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.7%

  • Width:

    3 mm

TPS78411QWDRBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • Use the Texas Instruments WEBENCH Power Designer tool to simulate the performance of the TPS78411QWDRBRQ1 with your specific input and output capacitors. This tool can help you determine the stability of the device and provide recommendations for capacitor values and ESR.
  • The TPS78411QWDRBRQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines to ensure the device operates within a safe temperature range.
  • Yes, the TPS78411QWDRBRQ1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to review the device's qualification data and ensure it meets the specific requirements of your application.
  • The enable pin (EN) is an active-high input that allows the device to be turned on and off. Connect the EN pin to a logic signal or a pull-up resistor to ensure the device is enabled or disabled as required. Consult the datasheet for specific guidelines on EN pin operation.
