The maximum input voltage that can be applied to the TPS78418QWDRBRQ1 is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out noise and ripple.
The minimum input capacitance required for the TPS78418QWDRBRQ1 is 1uF, as specified in the datasheet. However, it's recommended to use a higher capacitance value, such as 4.7uF or 10uF, to ensure stable operation and to filter out noise and ripple on the input voltage.
The TPS78418QWDRBRQ1 is rated for operation up to 125°C, but it's essential to consider the thermal design and layout of the PCB to ensure that the device operates within its recommended temperature range. Additionally, make sure to follow the recommended derating guidelines for high-temperature operation.
The power dissipation of the TPS78418QWDRBRQ1 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Make sure to consider the thermal design and layout of the PCB to ensure that the device operates within its recommended power dissipation range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78418QWDRBRQ1 Overview

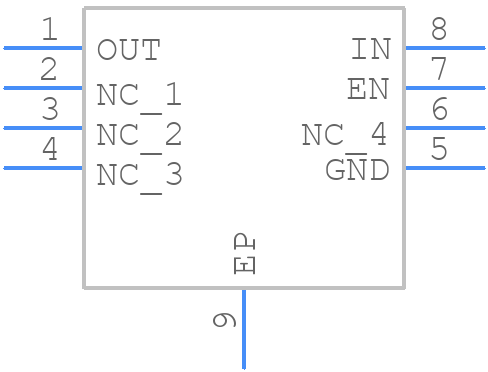

Use the download button to access the TPS78418QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
