Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure stability, follow the recommended output capacitor selection guidelines in the datasheet, and make sure the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, ensure the input capacitor is properly sized and placed close to the device. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor.
The absolute maximum input voltage rating for the TPS78425BQWDRBRQ1 is 6.5V. However, it's recommended to operate the device within the recommended input voltage range of 2.2V to 5.5V to ensure optimal performance and reliability.
The TPS78425BQWDRBRQ1 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques, such as heat sinking or airflow, to ensure reliable operation in high-temperature environments.
The power dissipation of the TPS78425BQWDRBRQ1 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the device's thermal resistance (RθJA) and the ambient temperature when calculating the power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78425BQWDRBRQ1 Overview

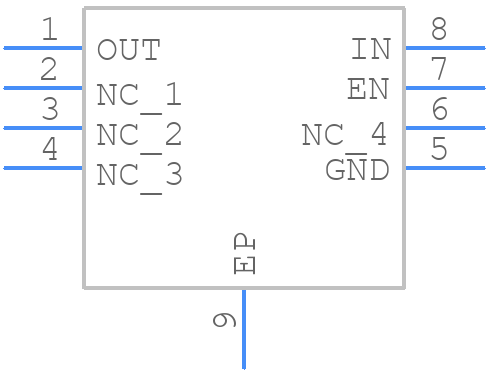

Use the download button to access the TPS78425BQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
