Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
Use the Texas Instruments WEBENCH Power Designer tool to simulate the performance of the TPS78430QWDRBRQ1 with your specific input and output capacitors. This tool can help you determine the stability of the device and provide recommendations for capacitor values and ESR.
The maximum ambient temperature range for the TPS78430QWDRBRQ1 is -40°C to 125°C, but the device can operate up to 150°C with derating. Refer to the datasheet for more information on thermal derating.
Yes, the TPS78430QWDRBRQ1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, layout, and thermal management guidelines to ensure reliable operation.
The power dissipation of the TPS78430QWDRBRQ1 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Refer to the datasheet for more information on power dissipation and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78430QWDRBRQ1 Overview

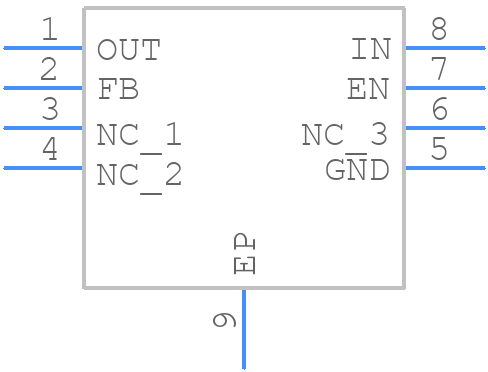

Use the download button to access the TPS78430QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
