TPS785075BQWDRBRQ1 - Texas Instruments

Description: LDO Voltage Regulators

Download TPS785075BQWDRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

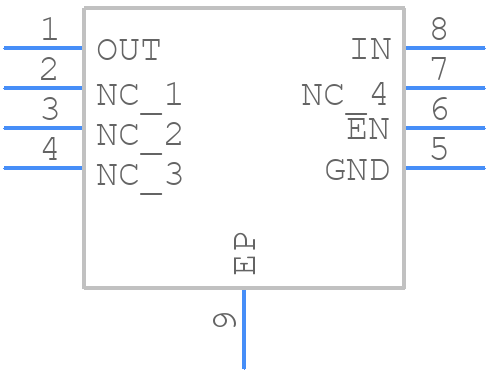

TPS785075BQWDRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS785075BQWDRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
TPS785075BQWDRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

TPS785075BQWDRBRQ1 Details

  • Manufacturer Part Number:

    TPS785075BQWDRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1.13 V

  • Dropout Voltage1-Nom:

    0.315 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.015%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    0.7627 V

  • Output Voltage1-Min:

    0.7372 V

  • Output Voltage1-Nom:

    0.75 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.7%

  • Width:

    3 mm

TPS785075BQWDRBRQ1 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent overheating.
  • The output capacitor should have a minimum capacitance of 10uF and an ESR (Equivalent Series Resistance) of less than 1 ohm. A ceramic capacitor with an X5R or X7R dielectric is recommended. The capacitor should also be rated for the maximum output voltage and ripple current.
  • The TPS785075BQWDRBRQ1 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating.
  • The power dissipation of the TPS785075BQWDRBRQ1 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The device's thermal resistance (RθJA) should also be considered to ensure proper heat sinking.
  • The TPS785075BQWDRBRQ1 is not AEC-Q100 qualified, which is a requirement for many automotive applications. However, it can be used in non-automotive applications or in automotive applications that do not require AEC-Q100 qualification. It's recommended to consult with Texas Instruments or a qualified automotive engineer to determine the suitability of the device for a specific application.
