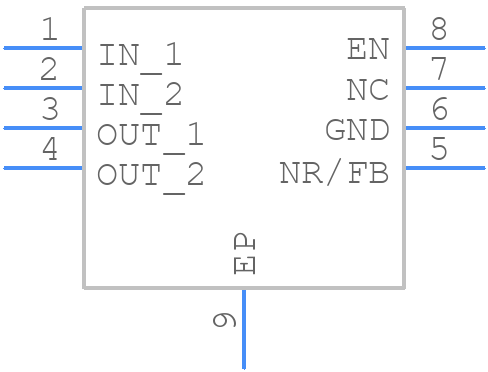

TPS78601DRBT - Texas Instruments

TPS78601DRBT Details

• Manufacturer Part Number:

  TPS78601DRBT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SON

• Package Description:

  VSON-8

• Pin Count:

  8

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Nom:

  0.39 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input-Output Voltage Differential-Max:

  4.275 V

• Input-Output Voltage Differential-Min:

  1 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Line Regulation-Max (%/V):

  12

• Load Regulation-Max(%):

  0.5%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  5.2 V

• Output Voltage1-Min:

  1.22 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2%

• Width:

  3 mm
