A good PCB layout for the TPS79901QDRVRQ1 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS79901QDRVRQ1 output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating conditions.
The TPS79901QDRVRQ1 can handle input voltages up to 5.5V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
Yes, the TPS79901QDRVRQ1 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is operated within its recommended operating conditions and that the PCB is designed to handle high temperatures.
The output voltage of the TPS79901QDRVRQ1 can be calculated using the following formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.2V), and R1 and R2 are the resistors used to set the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS79901QDRVRQ1 Overview

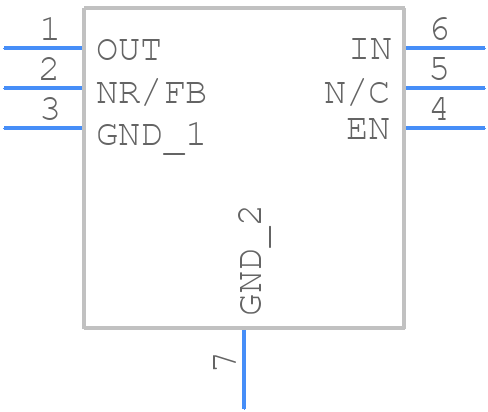

Use the download button to access the TPS79901QDRVRQ1 schematic symbol and PCB footprint.
