TPS79933DRVR - Texas Instruments

Description: Texas Instruments TPS79933DRVR, LDO Voltage Regulator, 200mA, 3.3 V ±2%, 2.7 → 6.5 Vin, 6-Pin SON

Download TPS79933DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

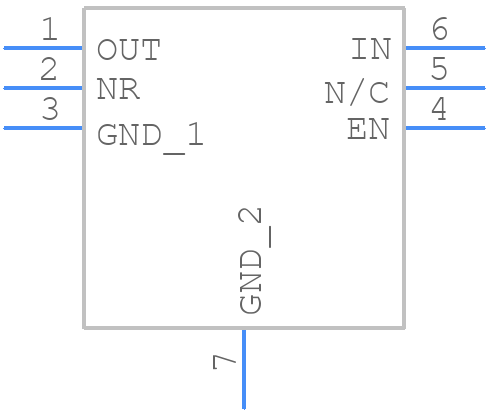

TPS79933DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS79933DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV (S-PWSON-N6)
click to zoom
3D Models
TPS79933DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV (S-PWSON-N6)
click to zoom

TPS79933DRVR Details

  • Manufacturer Part Number:

    TPS79933DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.16 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3.46 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.00066%

  • Load Regulation-Max:

    0.13167%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

TPS79933DRVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS79933DRVR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should be chosen based on the output voltage and current requirements. A 10uF to 47uF ceramic capacitor is a good starting point. Make sure to check the datasheet for specific recommendations.
  • The TPS79933DRVR can handle an input voltage up to 6.5V. However, it's recommended to operate the device within the recommended input voltage range of 3.5V to 5.5V for optimal performance and reliability.
  • The TPS79933DRVR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To ensure stability, make sure to follow the recommended PCB layout and component selection guidelines. Additionally, ensure that the input and output capacitors are properly sized and placed close to the device. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the output and ground pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS79933DRVR Overview

Use the download button to access the TPS79933DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS79, or try a keyword search, such as Linear Regulator ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
