Texas Instruments provides a recommended PCB layout in the TPS7A1106PDRVR evaluation module (EVM) user's guide, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize noise and thermal issues.
The selection of the output capacitor depends on the specific requirements of your application, including the output voltage, current, and ripple requirements. Texas Instruments recommends using a low-ESR capacitor with a value between 10uF to 100uF, and a voltage rating that is at least 1.5 times the output voltage. The datasheet provides more detailed guidance on capacitor selection.
The TPS7A1106PDRVR is rated for operation up to 125°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal management of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure reliable operation.
The TPS7A1106PDRVR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides more detailed information on how to implement overcurrent protection, including the recommended values for the resistor and capacitor.
The recommended input capacitor value and type depend on the specific application and the input voltage source. Texas Instruments recommends using a ceramic or film capacitor with a value between 1uF to 10uF, and a voltage rating that is at least 1.5 times the input voltage. The datasheet provides more detailed guidance on input capacitor selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A1106PDRVR Overview

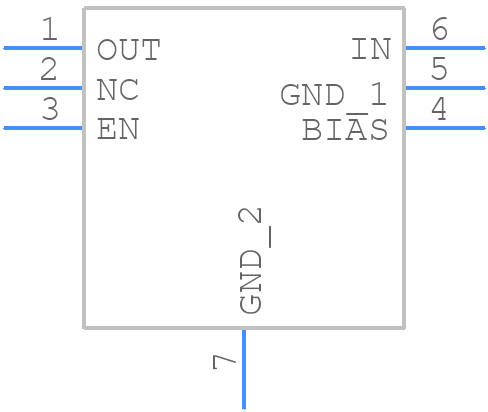

Use the download button to access the TPS7A1106PDRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
