TPS7A1650DRBR - Texas Instruments

Description: 60-V, 5-µA IQ, 100-mA low-dropout (LDO) voltage regulator with enable and power good

Download TPS7A1650DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

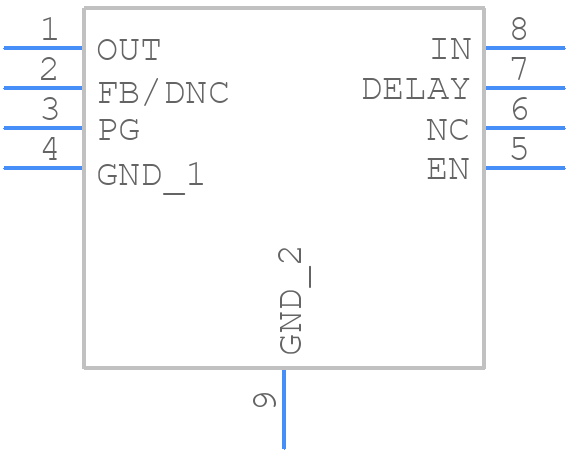

TPS7A1650DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A1650DRBR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B HEIGHT 1
click to zoom
3D Models
TPS7A1650DRBR - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B HEIGHT 1
click to zoom

TPS7A1650DRBR Details

  • Manufacturer Part Number:

    TPS7A1650DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.06 V

  • Input Voltage Absolute-Max:

    62 V

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.05%

  • Load Regulation-Max:

    4.9995%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

TPS7A1650DRBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A1650DRBR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with selecting the right capacitors.
  • The TPS7A1650DRBR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • Yes, the TPS7A1650DRBR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to review the device's specifications and ensure it meets the specific requirements of the application.
  • To troubleshoot issues with the TPS7A1650DRBR, start by verifying the input voltage, output voltage, and load current. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. TI also provides application notes and technical support to help with troubleshooting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS7A1650DRBR Overview

Use the download button to access the TPS7A1650DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A, or try a keyword search, such as Linear Regulator ICs
