Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For the input capacitor, a 10uF to 22uF ceramic capacitor is recommended, while for the output capacitor, a 10uF to 47uF ceramic capacitor is suitable. Make sure to follow the recommended capacitor values and types in the datasheet.
The TPS7A2550DRVR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Ensure that the device is properly heat-sinked and follow the thermal design guidelines in the datasheet.
Yes, the TPS7A2550DRVR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and testing guidelines for these applications, and consult with Texas Instruments for specific requirements and support.
Start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly configured, and the input and output capacitors are correctly selected. Use an oscilloscope to check for noise and ripple on the input and output. Consult the datasheet and application notes for troubleshooting guidelines and contact Texas Instruments support if needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A2550DRVR Overview

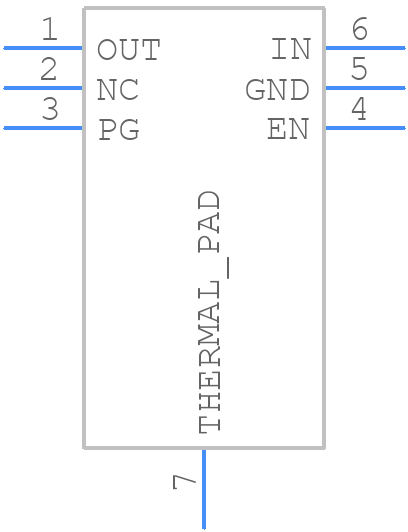

Use the download button to access the TPS7A2550DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
