The maximum input voltage that can be applied to the TPS7A3301RGWT is 18V, but it's recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet, including the use of a 10uF ceramic capacitor at the output and a 1uF ceramic capacitor at the input. Additionally, ensure that the input and output capacitors are placed close to the device and that the PCB layout is designed to minimize noise and parasitic inductance.
The TPS7A3301RGWT can deliver up to 3A of output current, but it's essential to consider the thermal and power dissipation limitations of the device. The maximum output current may be limited by the device's thermal performance, so it's crucial to follow the thermal design guidelines provided in the datasheet.
To ensure proper thermal management, it's essential to follow the thermal design guidelines provided in the datasheet. This includes providing adequate heat sinking, using a thermal pad or heat sink, and ensuring good airflow around the device. The maximum junction temperature (TJ) of the device is 150°C, and it's crucial to keep the device within the recommended operating temperature range to ensure reliability and performance.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A3301RGWT Overview

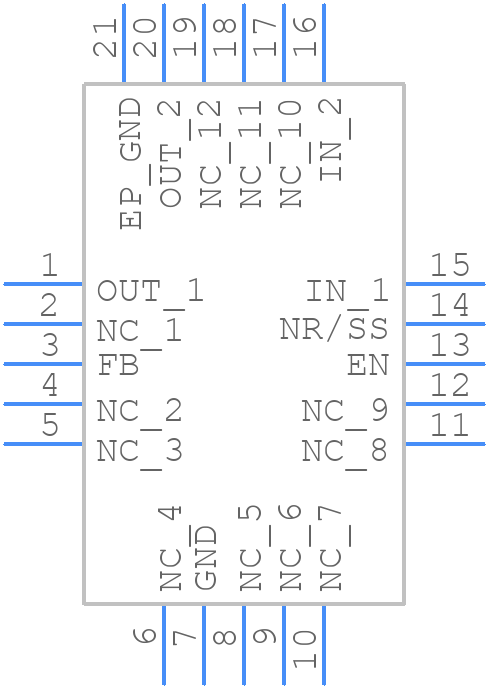

Use the download button to access the TPS7A3301RGWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
