TPS7A3701DRVR - Texas Instruments

Description: 1% High-Accuracy, 1-A, Low-Dropout Regulator with Reverse Current Protection

Download TPS7A3701DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

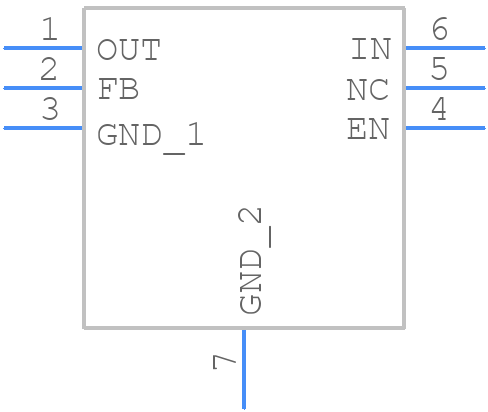

TPS7A3701DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A3701DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - wson
click to zoom
3D Models
TPS7A3701DRVR - Texas Instruments - 3D model - Small Outline No-lead - wson
click to zoom

TPS7A3701DRVR Details

  • Manufacturer Part Number:

    TPS7A3701DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.03

  • Load Regulation-Max(%):

    0.35%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2 mm

TPS7A3701DRVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The compensation network can be optimized by following the guidelines in the datasheet and using the provided equations to calculate the values of the compensation components. Additionally, Texas Instruments provides a compensation calculator tool to help with the design process.
  • The maximum input voltage that the TPS7A3701DRVR can handle is 18V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The TPS7A3701DRVR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques such as heat sinks or thermal interfaces.
  • To ensure stability, follow the guidelines in the datasheet for selecting the output capacitor and compensation components, and ensure that the device is operated within the specified input voltage and output current ranges. Additionally, consider using simulation tools such as SPICE or PSpice to verify the stability of the design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS7A3701DRVR Overview

Use the download button to access the TPS7A3701DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A, or try a keyword search, such as Linear Regulator ICs
