TPS7A3725DRVT - Texas Instruments

Description: 1-A, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable

Download TPS7A3725DRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

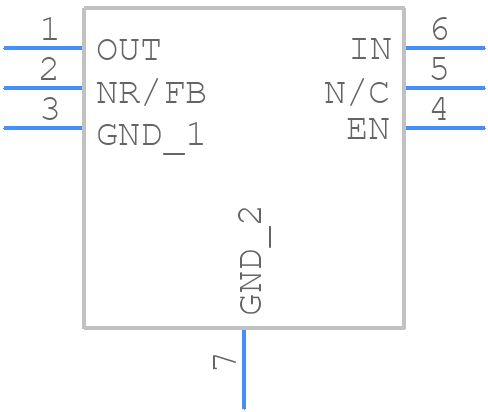

TPS7A3725DRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A3725DRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006D
click to zoom
3D Models
TPS7A3725DRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006D
click to zoom

TPS7A3725DRVT Details

  • Manufacturer Part Number:

    TPS7A3725DRVT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.00188%

  • Load Regulation-Max:

    0.005%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.525 V

  • Output Voltage1-Min:

    2.475 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2 mm

TPS7A3725DRVT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended. Refer to the TI application note 'TPS7A3725 PCB Layout Guidelines' for more details.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is placed close to the device. A minimum output capacitance of 10uF is recommended. If oscillations occur, try adding a 10nF capacitor in parallel with the output capacitor or increasing the output capacitance value.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • While ceramic capacitors can be used, they may not be the best choice due to their high ESR. X5R or X7R ceramic capacitors with a low ESR (< 10mΩ) can be used, but film capacitors or electrolytic capacitors with a low ESR are recommended for better performance and stability.
  • The output voltage tolerance and accuracy can be calculated using the formula: Output Voltage Tolerance = (Output Voltage Nominal x (1 + (Temperature Coefficient x (Temperature - 25°C)))) ± (Output Voltage Accuracy). Refer to the datasheet for the temperature coefficient and output voltage accuracy values.
