Texas Instruments provides a recommended PCB layout in the TPS7A4525DCQT datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure stability, it's essential to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality input capacitor. Also, avoid using long traces and minimize the distance between the input and output capacitors.
The TPS7A4525DCQT has an absolute maximum input voltage rating of 18V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure reliable operation and prevent damage.
The TPS7A4525DCQT has a junction temperature rating of 150°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to use the device within the recommended operating temperature range of -40°C to 125°C to ensure reliable operation.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is dependent on the input voltage ripple, output capacitor value, and switching frequency. The output noise is dependent on the input noise, output capacitor value, and switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A4525DCQT Overview

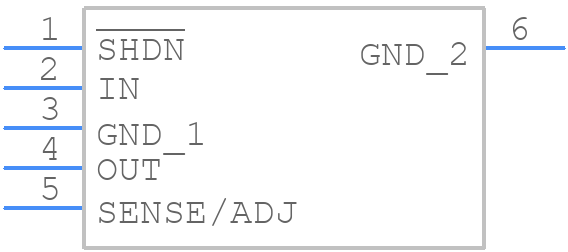

Use the download button to access the TPS7A4525DCQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
