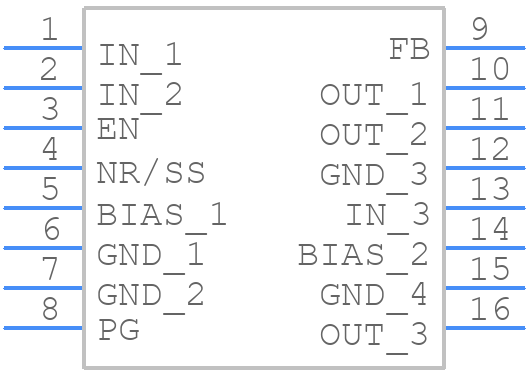

TPS7A5301RPST - Texas Instruments

TPS7A5301RPST Details

• Manufacturer Part Number:

  TPS7A5301RPST

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2019-12-18

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.375 V

• Dropout Voltage1-Nom:

  0.06 V

• Input Voltage-Max:

  6.5 V

• Input Voltage-Min:

  1.1 V

• Input-Output Voltage Differential-Max:

  6.5 V

• Input-Output Voltage Differential-Min:

  1.4 V

• JESD-30 Code:

  R-PQCC-N12

• JESD-609 Code:

  e3

• Length:

  2.5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  12

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  3 A

• Output Voltage1-Max:

  5.15 V

• Output Voltage1-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  0.5%

• Width:

  2.2 mm
