A good PCB layout for the TPS7A5701RTER involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS7A5701RTER output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for the TPS7A5701RTER is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.
Yes, the TPS7A5701RTER is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
The power dissipation of the TPS7A5701RTER can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the device's thermal resistance (RθJA) should be considered when calculating the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A5701RTER Overview

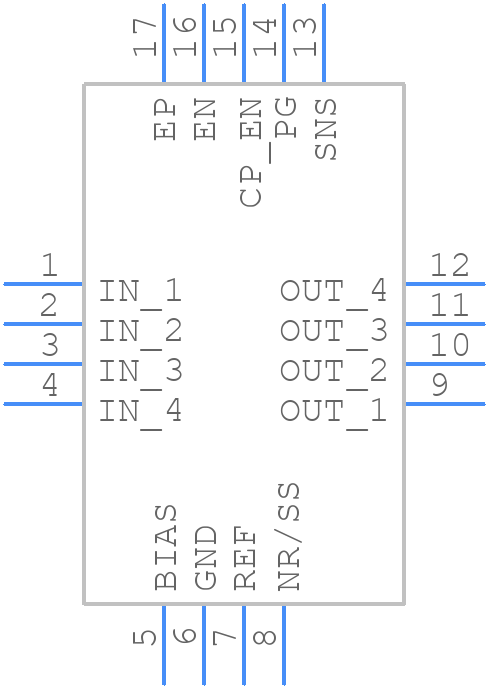

Use the download button to access the TPS7A5701RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
