Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure stability, the output capacitor should meet the minimum ESR (Equivalent Series Resistance) and capacitance requirements specified in the datasheet. Additionally, the capacitor should be placed close to the device and the output voltage should be monitored to ensure it remains within the specified range.
The absolute maximum input voltage rating for the TPS7A7401DSDR is 18V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 15V to ensure reliable operation and prevent damage.
The TPS7A7401DSDR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation in high-temperature environments.
The power dissipation of the TPS7A7401DSDR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The device's thermal resistance (RθJA) should also be considered to ensure the device operates within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A7401DSDR Overview

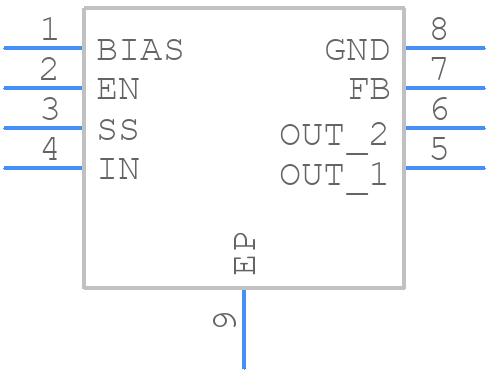

Use the download button to access the TPS7A7401DSDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
