Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS7A8012DRBR is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (1.2V) by the tolerance percentage (±2%). For example, the output voltage tolerance would be 1.2V ± 0.024V.
The maximum input voltage that can be applied to the TPS7A8012DRBR is 5.5V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended input voltage range of 2.2V to 5.5V to ensure optimal performance and reliability.
The TPS7A8012DRBR has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down and enter a low-power state to minimize power consumption. The device will also protect itself from backdrive voltage during power-down.
The TPS7A8012DRBR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Texas Instruments provides a thermal derating chart in the datasheet to help with this calculation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8012DRBR Overview

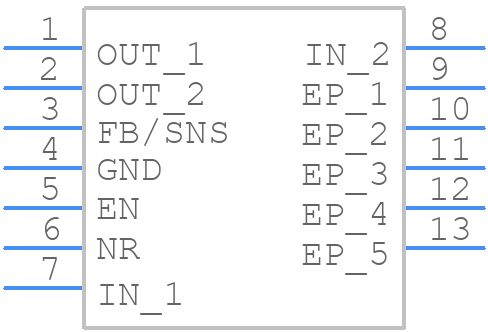

Use the download button to access the TPS7A8012DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
