Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS7A8050DRBR is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 5V output, the tolerance would be ±0.1V (5V x 2%).
The maximum input voltage that can be applied to the TPS7A8050DRBR is 15V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS7A8050DRBR is specified to operate up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for thermal derating information.
To ensure stability, follow the recommended capacitor values and types in the datasheet, and keep the input and output capacitors close to the device. Additionally, ensure that the PCB layout is well-designed and follows good practices for reducing noise and EMI.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8050DRBR Overview

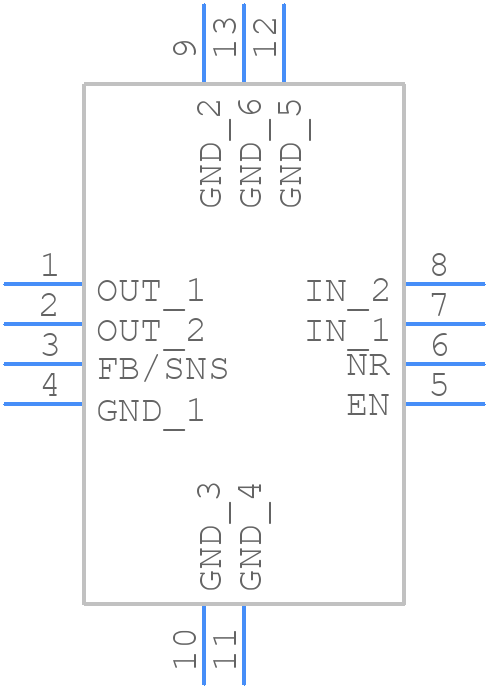

Use the download button to access the TPS7A8050DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
