A good PCB layout for the TPS7A8300ARGRT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure stability, it's essential to follow the recommended output capacitor selection and placement guidelines, and to ensure that the output voltage is within the specified range. Additionally, the input voltage should be stable and within the recommended range.
The TPS7A8300ARGRT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
Yes, the TPS7A8300ARGRT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process. However, additional testing and validation may be required for specific applications.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component selection, and ensure that the device is operated within the recommended specifications. Consult the datasheet, application notes, and TI's support resources for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8300ARGRT Overview

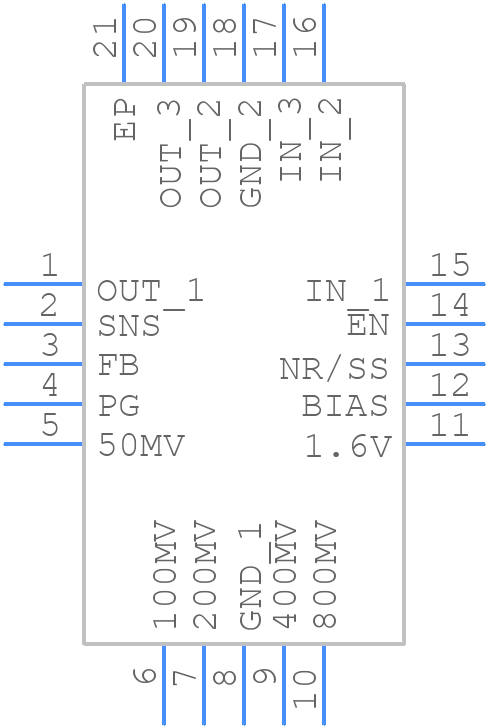

Use the download button to access the TPS7A8300ARGRT schematic symbol, PCB footprint, and 3D model.
