Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device.
The maximum input voltage rating for the TPS7A8301ARGRR is 18V, but it's recommended to operate the device within the recommended input voltage range of 6.5V to 14V for optimal performance and reliability.
The TPS7A8301ARGRR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its recommended operating temperature range.
Start by checking the input voltage, output voltage, and current draw to ensure they are within the recommended ranges. Then, check the PCB layout and component values to ensure they match the recommended design. If the issue persists, consult the datasheet's troubleshooting section or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8301ARGRR Overview

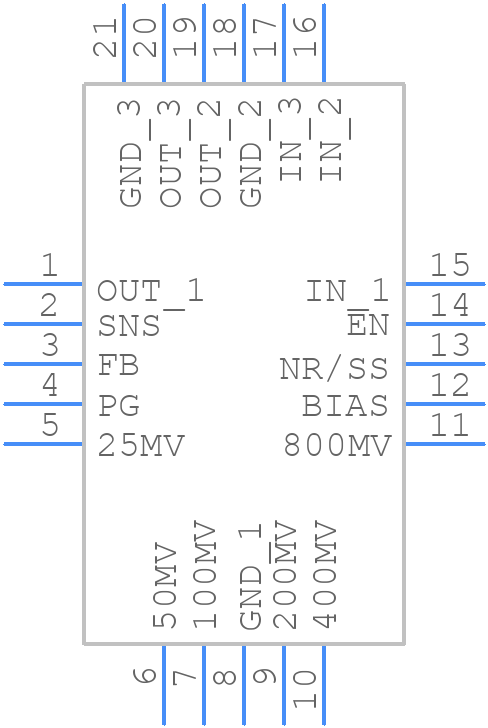

Use the download button to access the TPS7A8301ARGRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
