A good PCB layout for the TPS7A8400RGRT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS7A8400RGRT output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for the TPS7A8400RGRT is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.
Yes, the TPS7A8400RGRT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
The power dissipation of the TPS7A8400RGRT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the device's thermal resistance and junction temperature should be considered to ensure proper thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8400RGRT Overview

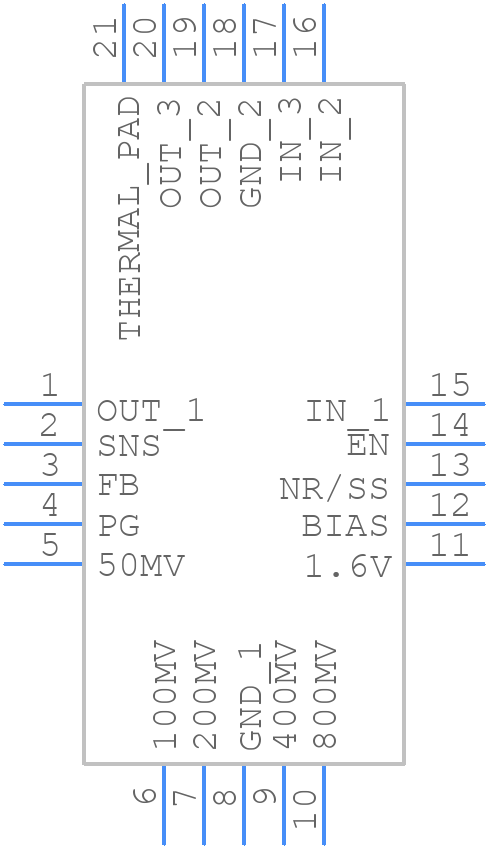

Use the download button to access the TPS7A8400RGRT schematic symbol, PCB footprint, and 3D model.
