Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TPS7A9201DSKT - Texas Instruments

Description: 2A High-Accuracy Low-Noise Low-Dropout (LDO) Voltage Regulator

Download TPS7A9201DSKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

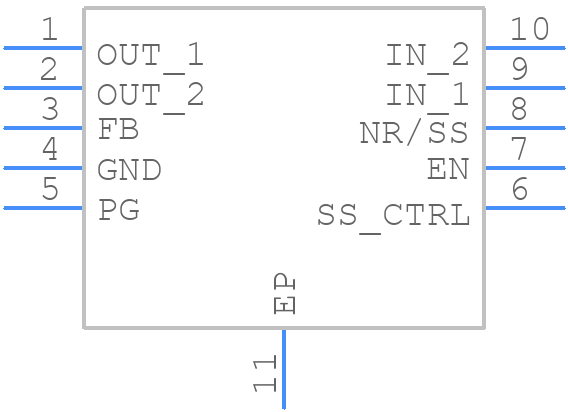

TPS7A9201DSKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A9201DSKT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - TPS75100DSKR-
click to zoom
3D Models
TPS7A9201DSKT - Texas Instruments - 3D model - Small Outline No-lead - TPS75100DSKR-
click to zoom

TPS7A9201DSKT Details

  • Manufacturer Part Number:

    TPS7A9201DSKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.4 V

  • Dropout Voltage1-Nom:

    0.26 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.4 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Line Regulation-Max (%/V):

    0.003

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5.2 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2.5 mm

TPS7A9201DSKT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A9201DSKT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The X5R or X7R dielectric type is recommended for their stability over temperature.
  • The TPS7A9201DSKT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • Yes, the TPS7A9201DSKT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to review the device's specifications and ensure it meets the specific requirements of the application.
  • The TPS7A9201DSKT has a specific power-up and power-down sequence. It's essential to follow the recommended power-up and power-down sequence in the datasheet to ensure the device operates correctly and to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS7A9201DSKT Overview

Use the download button to access the TPS7A9201DSKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A, or try a keyword search, such as Linear Regulator ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TPS7A9201DSKT

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPS7A9201DSKT Alternates

Showing results

Image Part Number Model
Part Image TPS7A9201DSKR Texas Instruments

Adjustable Positive LDO Regulator, 0.8V Min, 5.2V Max, 0.4V Dropout, BICMOS, PDSO10
