Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a low ESR (Equivalent Series Resistance) to ensure stability and low output voltage ripple.
The TPS7A9601DSCR has an absolute maximum input voltage rating of 12V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 10.5V to ensure optimal performance and reliability.
The TPS7A9601DSCR has a built-in overcurrent protection feature that limits the output current to a maximum of 1.5A. However, if additional overcurrent protection is required, an external current sense resistor can be used in conjunction with a comparator or a dedicated overcurrent protection IC.
The TPS7A9601DSCR has a thermal derating of 12.5mW/°C above 25°C, which means that the device's power dissipation rating decreases as the ambient temperature increases. This can affect the device's performance, particularly at high output currents and ambient temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A9601DSCR Overview

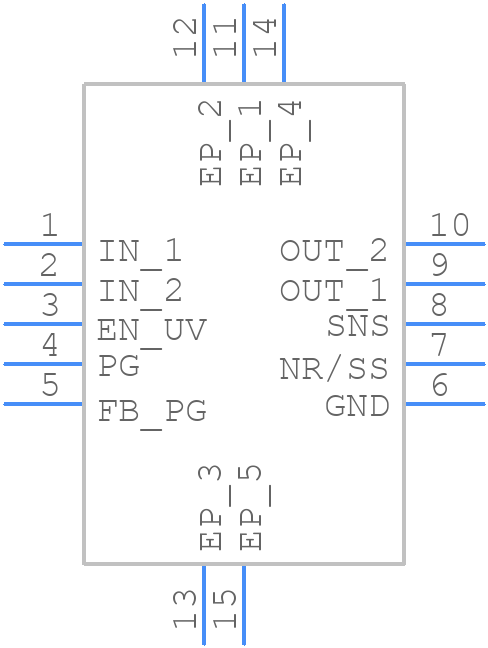

Use the download button to access the TPS7A9601DSCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
