TPS7B7701QPWPRQ1 - Texas Instruments

Description: Automotive Single-Channel Antenna LDO Linear Regulator With Current Sense

Download TPS7B7701QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

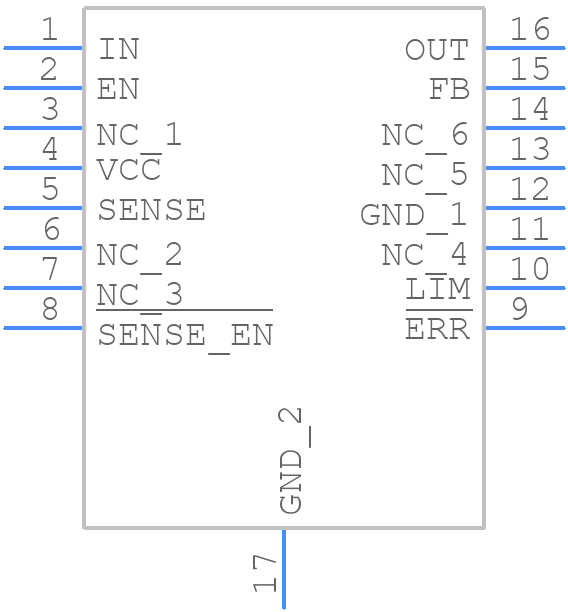

TPS7B7701QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7B7701QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-00016
click to zoom
3D Models
TPS7B7701QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - TSSOP-00016
click to zoom

TPS7B7701QPWPRQ1 Details

  • Manufacturer Part Number:

    TPS7B7701QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.016

  • Load Regulation-Max(%):

    1.3%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4.4 mm

TPS7B7701QPWPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7B7701QPWPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS7B7701QPWPRQ1 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS7B7701QPWPRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a maximum junction temperature of 150°C.
  • To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the output capacitor should be placed close to the device, and the input capacitor should be placed close to the input voltage source. It's also recommended to add a 10nF capacitor between the EN pin and GND to prevent oscillation.
  • The TPS7B7701QPWPRQ1 has a maximum output current capability of 1A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB.
