TPS7B7702QPWPRQ1 - Texas Instruments

Description: Automotive Dual-Channel Antenna LDO Linear Regulator With Current Sense

Download TPS7B7702QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

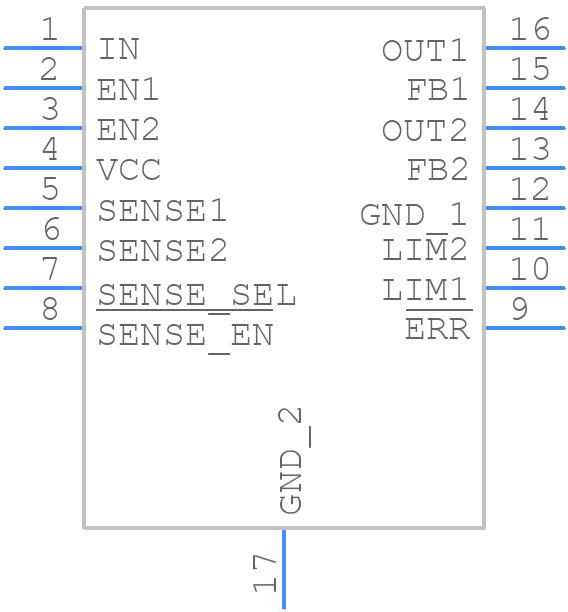

Symbol
TPS7B7702QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7B7702QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16-1
click to zoom
3D Models
TPS7B7702QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - TSSOP 16-1
click to zoom

TPS7B7702QPWPRQ1 Details

  • Manufacturer Part Number:

    TPS7B7702QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.016

  • Load Regulation-Max(%):

    1.3%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4.4 mm

TPS7B7702QPWPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7B7702QPWPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
  • The TPS7B7702QPWPRQ1 can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The power dissipation of the TPS7B7702QPWPRQ1 can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The calculated power dissipation should be within the recommended maximum power dissipation of 1.5W.
  • The thermal resistance of the TPS7B7702QPWPRQ1 is 24.5°C/W (junction-to-ambient) and 10.5°C/W (junction-to-case). This information is essential for calculating the junction temperature and ensuring the device operates within the recommended temperature range.
