A good PCB layout for the TPS7B8133DGNR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
To ensure stability, it's essential to follow the recommended capacitor values and types, and to ensure that the output capacitor has a low equivalent series resistance (ESR). Additionally, the input capacitor should be placed close to the device, and the input voltage should be well-regulated. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The TPS7B8133DGNR has an absolute maximum input voltage rating of 18V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 15V to ensure optimal performance and reliability.
The TPS7B8133DGNR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
The output voltage of the TPS7B8133DGNR can be calculated using the following formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.24V), and R1 and R2 are the resistors used in the feedback network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8133DGNR Overview

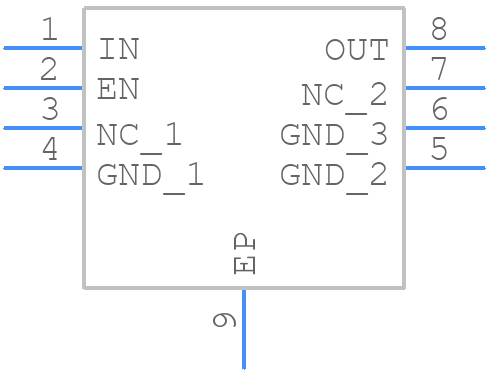

Use the download button to access the TPS7B8133DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
