A good PCB layout for the TPS7B8550QWDRCRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a star-ground configuration and to avoid routing sensitive signals near the device's power pins.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low equivalent series resistance (ESR) and a high-quality input capacitor. Also, avoid using a capacitor with a high ESL (Equivalent Series Inductance) on the output.
The TPS7B8550QWDRCRQ1 can handle an input voltage up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS7B8550QWDRCRQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Make sure to follow the recommended thermal design guidelines and consider using a heat sink if necessary.
To troubleshoot issues with the TPS7B8550QWDRCRQ1, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they meet the recommended specifications. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Also, verify that the device is properly soldered and that there are no signs of physical damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8550QWDRCRQ1 Overview

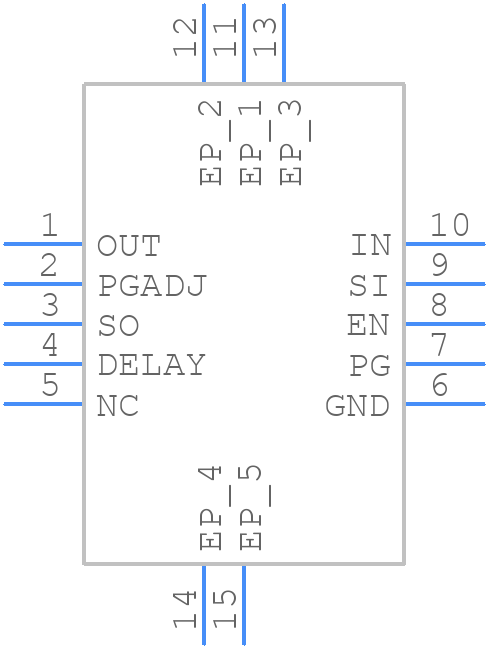

Use the download button to access the TPS7B8550QWDRCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
