Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as placing thermal vias under the device, using a solid ground plane, and keeping the device away from heat sources.
To ensure proper biasing during startup, make sure to follow the recommended startup sequence in the datasheet, which includes applying the input voltage before the enable signal. Additionally, ensure that the input voltage is stable and within the recommended range before enabling the device.
The maximum capacitive load that can be driven by the output is not explicitly stated in the datasheet, but it's generally recommended to keep the output capacitance below 10uF to ensure stability. However, the actual maximum capacitance will depend on the specific application and output voltage.
The TPS7B8733QDDARQ1 has built-in OVP and UVP, but it's still recommended to add external protection circuitry to ensure robustness. This can include adding a voltage supervisor or a dedicated OVP/UVP IC to provide additional protection.
The recommended input filter configuration will depend on the specific application and noise requirements. However, a general guideline is to use a pi-filter (L-C-R) or a T-filter (L-C-L) configuration with a cutoff frequency below the switching frequency of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8733QDDARQ1 Overview

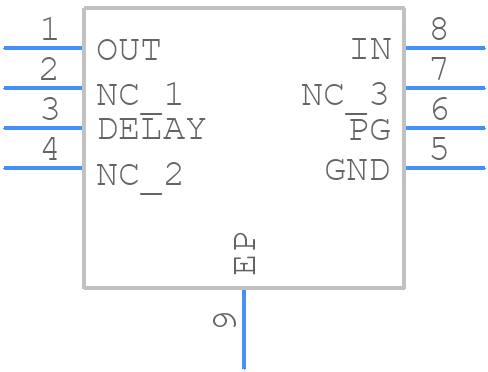

Use the download button to access the TPS7B8733QDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
