Texas Instruments provides a recommended PCB layout in the TPS7H1111MPWPT application note (SLVAE04) that includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The output capacitor selection depends on the output voltage, output current, and desired transient response. TI recommends using a low-ESR capacitor with a value between 10uF to 100uF, and a voltage rating at least 1.5 times the output voltage. The TPS7H1111MPWPT datasheet provides a detailed capacitor selection guide.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the voltage rating of the specific package and the operating conditions. For the TPS7H1111MPWPTSEP, the maximum input voltage is 5.25V, and it's recommended to keep the input voltage below 5V to ensure reliable operation.
To ensure stability, follow the recommended PCB layout, use a low-ESR output capacitor, and add a 10nF to 100nF ceramic capacitor between the VIN and GND pins to filter out high-frequency noise. Additionally, avoid using long traces and minimize the distance between the input and output capacitors.
The typical dropout voltage of the TPS7H1111MPWPTSEP is around 200mV to 300mV, depending on the output current and input voltage. This means that the input voltage should be at least 200mV to 300mV higher than the output voltage to ensure proper regulation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7H1111MPWPTSEP Overview

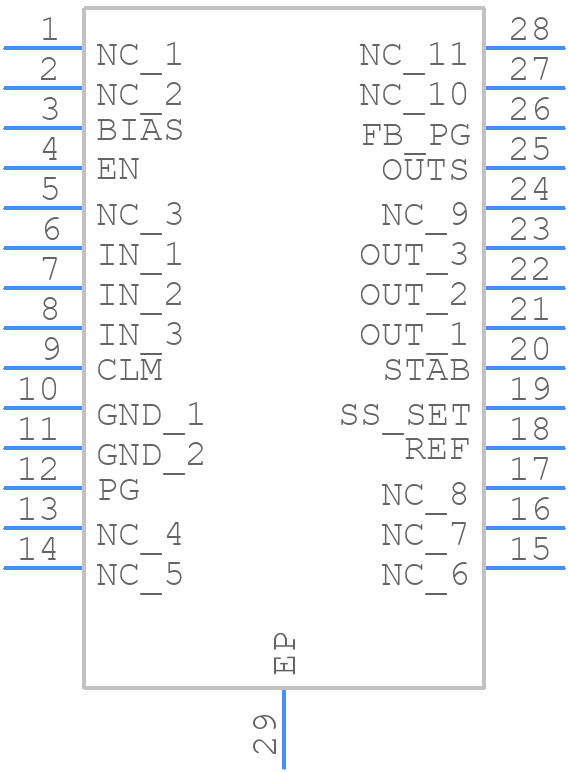

Use the download button to access the TPS7H1111MPWPTSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7H,
or try a keyword search, such as Linear Regulator ICs
