TPS7H1201SHKS - Texas Instruments

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA,7V,-55°C ~ 210°C, 16-CFP

Download TPS7H1201SHKS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

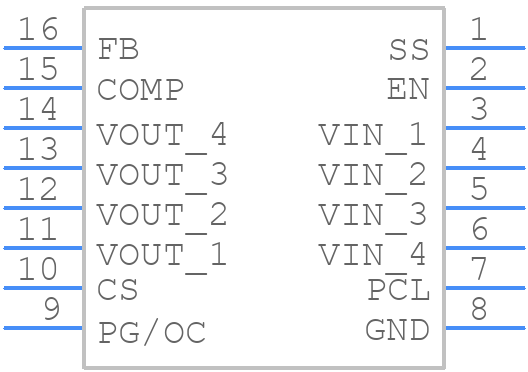

TPS7H1201SHKS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7H1201SHKS - Texas Instruments PCB footprint - Other - Other - HKS0016A
click to zoom
3D Models
TPS7H1201SHKS - Texas Instruments - 3D model - Other - HKS0016A
click to zoom

TPS7H1201SHKS Details

  • Manufacturer Part Number:

    TPS7H1201SHKS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.055 V

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    R-CDFP-F16

  • JESD-609 Code:

    e4

  • Length:

    11.01 mm

  • Line Regulation-Max (%/V):

    0.07

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    210 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Operating Temperature-Max:

    210 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    6.8 V

  • Output Voltage1-Min:

    1.2 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HDFP

  • Package Equivalence Code:

    SOP16,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    2.34 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    9.63 mm

TPS7H1201SHKS Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7H1201SHKS involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, adding a small ceramic capacitor (e.g., 10nF) between the output and ground can help improve stability.
  • The TPS7H1201SHKS has an absolute maximum input voltage rating of 15V. However, the recommended operating input voltage range is 4.5V to 14V. Exceeding the absolute maximum rating can damage the device.
  • The TPS7H1201SHKS is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management strategies to ensure reliable operation.
  • The output voltage of the TPS7H1201SHKS is determined by the resistor divider network (R1 and R2) connected to the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R2/R1).
