Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure proper biasing during startup, it's recommended to follow the startup sequence outlined in the datasheet, which includes applying the input voltage before the enable signal. Additionally, a soft-start circuit can be implemented to reduce inrush current and prevent voltage overshoot.
While the datasheet doesn't specify a maximum capacitive load, it's generally recommended to limit the output capacitance to 10uF or less to prevent oscillation and ensure stability. However, the actual maximum capacitance will depend on the specific application and output voltage.
The TPS7H1210MRGWSEP has built-in OVP and UVP features, but it's still recommended to implement external protection circuits to ensure robustness and reliability. This can include using external voltage supervisors, reset ICs, or other protection devices to detect and respond to voltage faults.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value will depend on the specific application, but a general guideline is to use a capacitor with a value of 10uF to 22uF, with a voltage rating of at least 2x the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7H1210MRGWSEP Overview

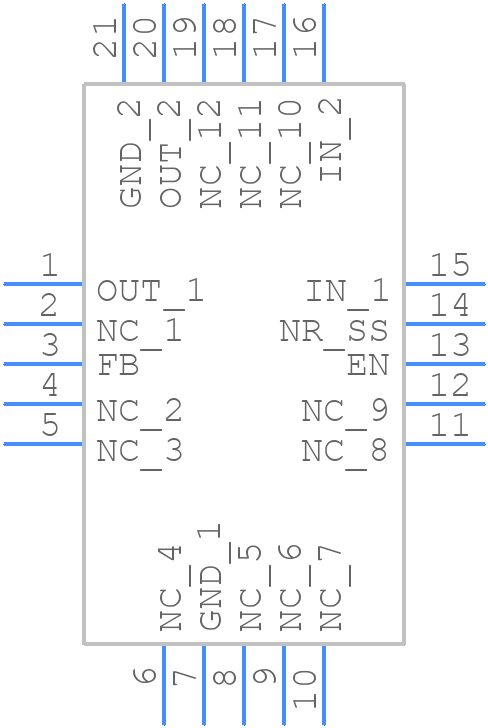

Use the download button to access the TPS7H1210MRGWSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7H,
or try a keyword search, such as Linear Regulator ICs
